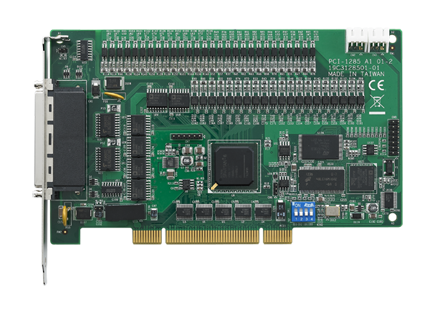

| PCI-1285 |
| 八軸PCI接口DSP架構(gòu)標準版脈沖運動控制卡 |
| PCI-1285-AE |
| Pulse Type Motion Control |
General Digital I/O |
32-ch DI, 32-ch DO |
| Machine Interfaces |
LMT+, LMT-, ORG |
| Max. Output Speed |
5 Mbps |
| Number of Axis |
8 |
| Position Counters |
Range of command and actual position |
| Pulse Output Type |
Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type) |
| Servo Driver Interfaces |
ALM, INP |
| Step Count Range |
±2, 147, 483, 646 |
| Velocity Profiles |
T-Curve, S-Curve |
| Encoder Interface |
Input Range |
5 ~ 10 V |
| General |
Power Consumption |
Typical: 5 V @ 530 mA 3.3 V @ 160 mA; Max.: 5 V @ 500 mA 3.3 V @ 1 A |
| Connector |
2 x 100-pin mini-SCSI female connector |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140° F) |
| Humidity |
5 ~ 95% RH |
| Bus |
Universal PCI V2.2 |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Dimensions |
175 x 100 mm (6.9" x 3.9") |
| Encoder Interface |
Isolation Protection |
2,500 VDC |
| Input Type |
Quadrature (A/B phase) or up/down |
| Max. Input Frequency |
10 MHz under 4xAB mode |
| Pulse Type Motion Control |
Motor Driver Support |
Pulse-type servo/stepping |
| Interpolation |
2 to 8-axis linear |
|
