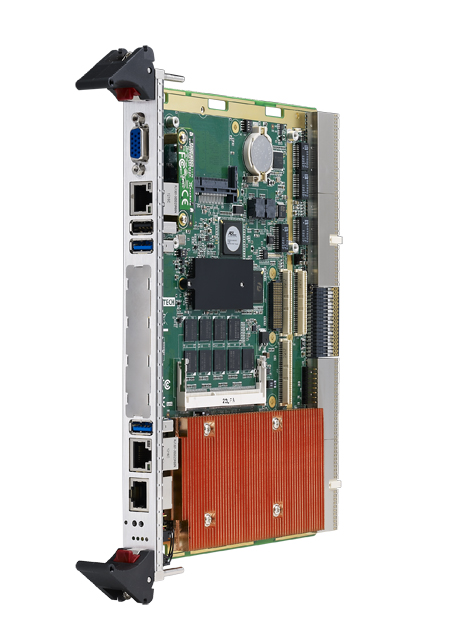

Advantech’s MIC-3397 series is a 6U CompactPCI single board computer with server class processor of Intel® Quad-Core Xeon® E3-1125C v2(40W)/E3-1105C v2(25W) and low power dissipation processor of Intel® Dual-Core Pentium® B925C(15W) ,with DH8900 chipset supports DMI1.0 x 4 FSB. The processor using Intel® 22nm 64 bit process technology, up to 2.5GHz clock speed, 8MB L3 cache featured with Intel® Hyper-Threading, Virtualization, Trusted Execution Technology, enable the board meet the highest standards for the management and security of high-availability applications. It supports dual channel ECC memory, up to 16GB DDR3 of 1333/1600 MHz with max 8G on board and 8G SO-DIMM memory, three 2.5” Serial ATA interfaces (one on board optional with one 8 GB NAND flash, two to RTM),one Cfast slot, five Gigabit Ethernet ports( two on front panel, two to PCIMG2.16, two to RTM with one optional with front panel), six USB2.0 ports (three on front panel, three to RTM), two VGA ports (one on front panel, one to RTM) on 4HP, three COM ports (one to front panel, two to RTM), one PS/2 port, and one PCIe2.0 x4 interface reserved for user define to rear transition module.
MIC-3397, designed in single slot (4HP) and dual slots (8HP) form factor widths features. The 8HP version provides extensive & rich IO support, is featured with a high-performance discrete graphics, using AMD Radeon E6760 GPU, supports 1GB GDDR5 at PCIe x1, x2, x4, x8, and x16 lane widths, 2.5 GT/s and 5.0 GT/s link-data rates, up to four display outputs including one DVI-I, one DVI-D port and two DP 1.1or 1.2 port in a MXM 3.0 type A form factor.
MIC-3397 Series can be installed in a standard CompactPCI system slot as system master, or peripheral slot as stand-alone server blade without CompactPCI bus communication, it meets the harsh environment application, to make board attractive to multiple markets which is ideally suited for datacom, telecom and military applications, its outstanding graphics design will bring more opportunities for image-processing in medical, defense system and many other vertical segments applications.
