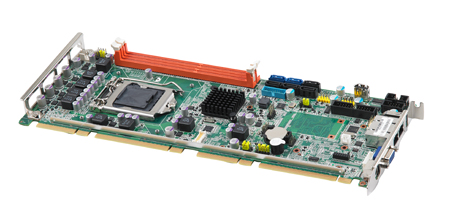

| PCE-7127G2-00A1E |
| Form Factor |
Form Factor |
PICMG1.3 |
| Processor System |
CPU |
Intel Xeon E3 |
| CPU TDP |
Up to 77 W |
| Frequency |
Up to 3.5 GHz |
| Core Number |
4 |
| L2 Cache |
- |
| L3 Cache |
8MB |
| BIOS |
AMI 64 Mbit |
| Chipset |
Intel C216 |
| Integrated Graphics |
Yes |
| FSB |
- |
| Memory |
Technology |
DDR3 1333/1600 MHz |
| Capacity |
Up to 16GB |
| ECC Support |
- |
| Socket |
1 x 240-pin DDR3 |
| Display |
Controller |
Intel HD graphics Integrated |
| Graphic Memory |
Shared with system memory up to 1GB |
| Multiple Display |
Dual |
| Display Interface |
VGA: Up to 2048 x 1536 DVI: Up to 1920 x 1200 |
| Expansion Interface |
PCI Express x 16 |
1(or 2 PCIex8) |
| PCI Express x 4 |
1 |
| PCI |
4 |
| Ethernet |
Controller |
LAN1: Intel 82579LM LAN2: Intel 82574L |
| Speed |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
| Interval |
Programmable 1~255 sec |
| Storage |
CFast |
- |
| CompactFlash |
- |
| I/O |
SATA |
2 x SATA III (Raid 0, 1, 5, 10) 4 x SATA II (Raid 0, 1, 5, 10) |
| IDE |
- |
| Floppy |
- |
| USB2.0 |
2 |
| USB3.0 |
9 |
| GPIO |
8-bit |
| LPT |
1 |
| COM Port |
2 x RS232 |
| PS/2 Keyboard/Mouse |
1 |
| System Fan |
1 |

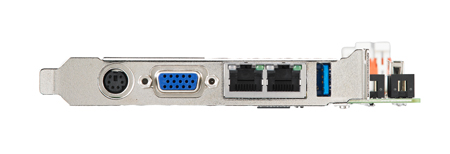

| Rear I/O Interface |
USB2.0 |
- |
| COM |
- |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
| Ethernet |
2 |
| VGA |
1 |
| Power Requirement |
Voltage |
+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current |
6.65A/1.62A/1.98A/0.73A/0.13A/0A |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Non-Operating Vibration |
2 Grms |
| Physical Characteristics |
Dimensions (LxW) |
338 x 122 mm (13.3" x 4.8") |
| Weight |
0.5 kg |
| Certification |
EMC |
CE, FCC |
| Management Solution |
Out of band remote management |
AMT/IPMI |
