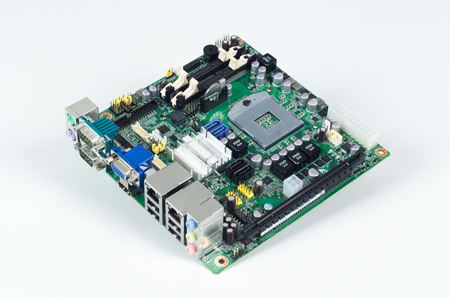

AIMB-272G2-00A1E |
AIMB-272VG-00A1E |
| Expansion |
Slots |
PCIe x16, Mini-PCIe |
PCIe x16, Mini-PCIe |
| Form Factor |
Form Factor |
mini ITX |
mini ITX |
| Processor |
CPU |
Intel Core i7-2710QE / i5-2510E / i3-2330E / Celeron B810 |
Intel Core i7-2710QE / i5-2510E / i3-2330E / Celeron B810 |
| CPU TDP |
45 / 35 W |
45 / 35 W |
| Frequency |
2.1 / 2.5 / 2.2 / 1.6 GHz |
2.1 / 2.5 / 2.2 / 1.6 GHz |
| Core Number |
2/4 |
2/4 |
| L3 Cache |
6 / 3 / 3 / 2 MB |
6 / 3 / 3 / 2 MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel QM67 |
Intel HM65 |
| Memory |
Technology |
DDR3 1066 / 1333 MHz |
DDR3 1066 / 1333 MHz |
| Max. Capacity |
8 GB |
8 GB |
| Socket |
2x 204-pin SODIMM |
2x 204-pin SODIMM |
| Display |
Controller |
Integrated Gfx Gen5.75 |
Integrated Gfx Gen5.75 |
| Graphic Engine |
DirectX 10 and OpenGL 2.1 support |
DirectX 10 and OpenGL 2.1 support |
| Graphic Memory |
Share with system memory up to 2 GB |
Share with system memory up to 2 GB |
| VGA |
up to 2048 x 1536 |
up to 2048 x 1536 |
| Video Interface |
CRT+LVDS, CRT+DVI, DVI+HDMI, LVDS+HDMI, CRT+HDMI, DVI+LVDS |
CRT+LVDS, CRT+DVI, DVI+HDMI, LVDS+HDMI, CRT+HDMI, DVI+LVDS |
| LCD (TTL/LVDS/eDP) |
LVDS: Single channel 24-bit / dual channel 48-bit |
|
| DDI (HDMI/DVI/DisplayPort) |
HDMI: 1650 Mbps / channel @ 165 MHz DVI: 1920 x 1200 |
HDMI: 1650 Mbps / channel @ 165 MHz DVI: 1920 x 1200 |
| Multiple Display |
Dual |
Dual |
| Expansion |
PCI Express x 16 |
1 |
1 |
| Slot Type |
1 |
1 |
| Ethernet |
Controller |
GbE1: Intel 82579LM, GbE2: Intel 82583V |
GbE1: Intel 82579LM |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (Mic-in, Line-out, Line-in) |
3 (Mic-in, Line-out, Line-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
| Storage |
SATA |
2 x SATA 3 (Max. Data Transfer Rate 300 MB/s) |
2 x SATA 3 (Max. Data Transfer Rate 300 MB/s) |
| CFast |
1 |
1 |
| I/O |
USB2.0 |
8 |
8 |
| GPIO |
1 |
1 |
| COM Port |
4 (RS-232) |
4 (RS-232) |
| Keypad |
2 |
2 |
| TPM |
Yes |
Yes |
| Power |
Power Type |
ATX, AT |
ATX, AT |
| Connector |
ATX20P |
ATX20P |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) |
0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature |
-20~ 70° C |
-20~ 70° C |
| Vibration Resistance |
3.5 Grms (non OP) |
3.5 Grms (non OP) |
| Physical |
Dimension (mm) |
170x 170 mm (without heatsink) |
170x 170 mm (without heatsink) |
| Weight |
1.04 kg (1.72 lb), weight of total package |
1.04 kg (1.72 lb), weight of total package |
| Construction |
with CPU cooler design |
with CPU cooler design |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
