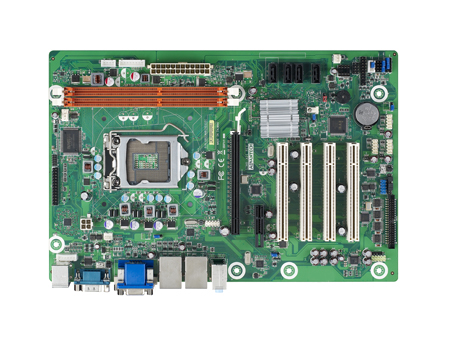

| SIMB-A21-8VG00A1E |
| Form Factor |
Form Factor |
ATX |
| Processor |
CPU |
Intel Core 3nd gen i7 / Intel Core 2nd gen i7 / Intel Core 3nd gen i5 / Intel Core 2nd gen i5 / Intel Core 2nd gen i3 / Intel Celeron |
| Frequency |
i7-3770S 3.9 GHz / i7-2600 3.8 GHz / i5-3550S 3.7 GHz / i5-2400 3.40 GHz / i3-2120 3.3 GHz / Celeron G540 2.5GHz |
| Core Number |
4 / 4 / 4 / 4 / 3 / 2 |
| L2 Cache |
8 MB / 8 MB / 6 MB / 6 MB / 3 MB / 2 MB |
| BIOS |
AMI 32 Mbit, SPI |
| Chipset |
Intel H61 |
| Memory |
Technology |
Dual Channel DDR3 1066/1333 MHz |
| Max. Capacity |
16 GB |
| Socket |
2 x 240-pin DIMM |
| Display |
Controller |
Intel HD Graphics 2000/3000 |
| Graphic Memory |
supports up to 224 MB |
| VGA |
Up to 2048 x 1563 |
| DDI (HDMI/DVI/DisplayPort) |
1920 x 1200 |
| Multiple Display |
Dual |
| Expansion |
PCI Express x 16 |
1 |
| PCI Express x 1 |
1 |
| PCI |
4 |
| Ethernet |
Controller |
GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E |
| Speed |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (HD, Mic-in, Line-in, Line-out) |
| Watchdog Timer |
WatchDog Timer |
Yes |
| Storage |
SATA |
4 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| I/O |
USB2.0 |
10 |
| GPIO |
8 |
| LPT |
1 |
| COM Port |
(5 x RS232,1 x RS232/ 422/ 485) |
| Keypad |
1 |
| TPM |
Optional |
| Reset Button |
1 |
| Power |
Power Type |
ATX |
| Connector |
24-pin+4-pin |
| Environment |
Operational Temperature |
0 ~ 50° C (32 ~ 122° F) |
| Non-Operational Temperature |
-20~ 70° C(-4 ~ 158° F) |
| Physical |
Dimension (mm) |
305 x 203 mm |
| Operating System |
Microsoft Windows |
Yes |
| Linux |
Yes |
| Certification |
EMC |
CE, FCC |
