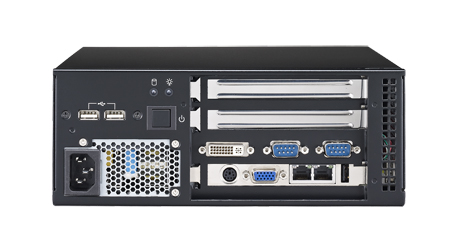

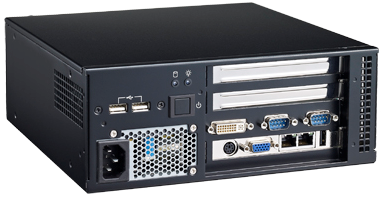

| AiMC-3200 |
| 智能微型工控機，Intel Core i7/i5/i3 CPU,2 擴展槽，250W 80 Plus PSU |
|
|
Main Features
- Intel® 第3/第2代Core™ i7/i5/i3 CPU (LGA1155)
- 1個 PCIe x16 & 1個 PCIe x4 擴展插槽
- 2個內置, 抗震, 2.5" SATA HDD 托架
- 前面板 I/O: VGA+DVI-D, 2 GbE LAN, 3 USB2.0, 2 COM
- 機箱入侵警報
- 250W 80Plus PSU
 數據表(PDF)  技術資料下載
|
|
| AIMC-3200-00A1E |
| Form Factor |
Form Factor |
Wallmount |
| Processor System |
CPU |
Intel Core i3/i5/i7 (LGA1155 socket) |
| CPU TDP |
Up to 95 W |
| Frequency |
Up to 3.4 GHz |
| Core Number |
4 |
| L3 Cache |
8 MB |
| BIOS |
AMI SPI 64 Mbit |
| Chipset |
Intel H61 |
| Integrated Graphics |
Yes |
| Memory |
Technology |
DDR3 1333 MHz |
| Capacity |
Up to 16 GB (8 GB per DIMM) |
| ECC Support |
- |
| Socket |
2 x 204-pin SODIMM |
| Display |
Controller |
Intel HD graphics Integrated |
| Graphic Memory |
- |
| Multiple Display |
Dual |
| Expansion Interface |
PCI Express x 16 |
1 |
| PCI Express x 4 |
1 |
| PCI Express x 1 |
- |
| Mini PCIe |
- |
| Ethernet |
Controller |
LAN1: Intel 82579V LAN2: Intel 82583V |
| Speed |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
| Interval |
Programmable 1~255 sec |
| Storage |
CFast |
- |
| Front I/O Interface |
Display |
2 |
| LAN |
2 |
| USB3.0 |
- |
| USB2.0 |
3 |
| COM |
2 |
| PS/2 |
1 (1 x Keyboard or 1 x Mouse) |
| Audio |
- |
| Rear I/O Interface |
Display |
- |
| LAN |
- |
| USB2.0 |
- |
| COM |
- |
| PS/2 |
- |
| DVI |
- |
| Ethernet |
- |
| VGA |
- |
| Power Supply |
Power Type |
ATX |
| Output Wattage |
250W |
| Input Range |
AC 100 V ~ 240 V |
| Cooling |
System Fan |
2 (6cm / 27.7 CFM) |
| Air Filter |
Yes |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Non-Operational Temperature |
-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing |
| Operating Vibration |
1 Grms |
| Non-Operating Vibration |
2 Grms |
| Operating Shock |
10 G |
| Physical Characteristics |
Dimensions (W x H x D) |
232 x 90 x 232 mm (9.1 x 3.5 x 9.1) |
| Weight |
4.5 kg (9.9 lb) |
| Certification |
EMC |
CE/FCC Class A, CCC, BSMI |
| Safety Certifications |
UL, CB, CCC, BSMI |
| Disk Drive Bay |
3.5" Internal |
- |
| 2.5" Internal |
2 |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature |
| Control |
Power Switch |
| Management Solution |
Software |
SUSIAccess |
|
